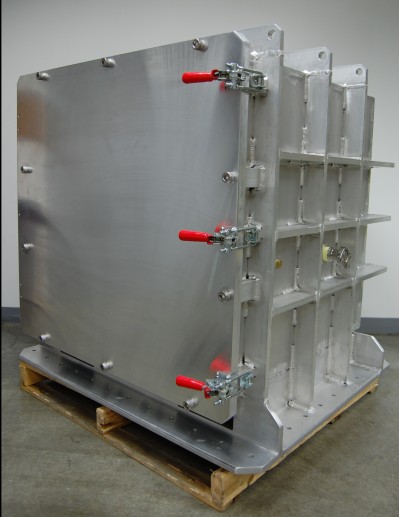

Complementing the broad range of altitude vacuum pressure and thermal test technologies that Abbess already offers to customers involved in safe Transportation Testing of Packaging, Abbess also custom engineers and manufactures chambers rated for use in vibration testing.
Our Altitude Chambers can be integrated with your vibration or shaker tables to provide a robust test platform capable of ensuring the durability of your product. As always, all of our vacuum chamber systems are built to meet your specific needs.
Customers specify peak to peak displacement, frequency, and acceleration parameters, as well as technical detail on the vibration simulation table provided and the Abbess engineers design the chamber system for a fully integrated transport simulation. Customers have found these chambers to be ideal for HALT HASS testing as well as for ASTM standards.
Chambers are designed with the end user product test engineers to provide fixturing and anchorage internal to the chamber to secure the Articles Under Test. Feedthroughs are provided for in test product monitoring and interaction. And the chamber is provided with designed anchorage to the customer provided vibration table.
If your are looking for process controls for vacuum, see our Vacuum Cycle Controller section.
To get an accurate quote for the system you need fill out our RFQ or call today!
