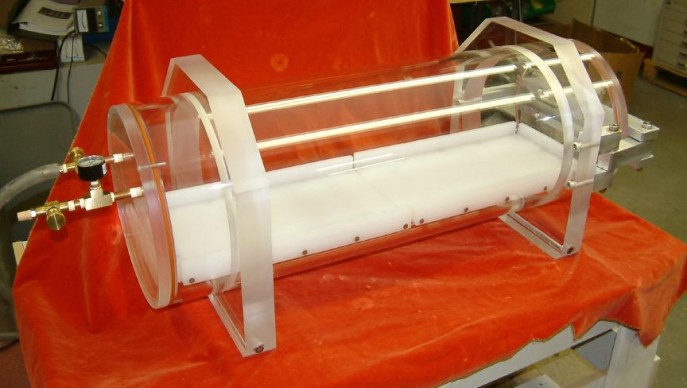

Acrylic Round Vacuum Chamber

clear round acrylic vacuum chamber

This bench top sized vacuum chamber is designed to be a rugged unit with 1/2″ thick walls and true o-ring seals for deep vacuums and long life.

Our customers use these chambers in vacuum degassing small batches of resins, epoxies, vacuum encapsulation, vacuum impregnation, prototyping and research in vacuum processes and methods. It is constructed of Acrylic with an optional clear top.

  • All chambers are capable of dynamic vacuums of 29.92 inch(Hg) or better (10-4 torr)
  • Designed, fabricated and tested with uncompromising attention to cost and detail.
Material:
  • Cast Acrylic
  • Better known by name brands such as Plexiglass, Acrylite, Chemcast, etc. Acrylic plastic offers durability and is an excellent substitute for glass, acetate, polycarbonate or PVC when one is looking for transparency or translucency. It is half the weight of glass and 45% the weight of aluminum. Maximum Service Temperature, Air 65 – 112 °C 149 – 234 °F   Average = 94.5 °C; Transmission, Visible 92%
  • Material data- Data sheet
  • Compatibility – Data sheet
Interior Dimensions:
Included Features:
  • Chamber is Full clear
  • Vacuum down to 29.92 inch(Hg) under dynamic vacuum
  • Vacuum gauge with a dial registering 0 to 30 inch of Mercury (Hg)
  • Vacuum connection, 1/4in. NPT x 1/4in. hose barb provides quick connection to vacuum pump (optional)
  • Vacuum Needle Valve for controlled evacuations
  • Vacuum Break Needle Valve and internal diffuser with muffler, provides controlled vacuum break
  • Mounting: 4 point feet, for stabile operation
Optional Features/Items
  • XZAZZ_00052Electronic vacuum sequencer and regulator with manual override
  • Electronic feed-thrus
  • Mixers
Round vacuum chamber with base plate, similar to a bell jar
Round vacuum chamber with base plate, similar to a bell jar.
