The Abbess Instruments Vacuum Dispensing Chamber System is designed to meet manufacturing process needs for calibrated multi-dosing of plotting material under vacuum.

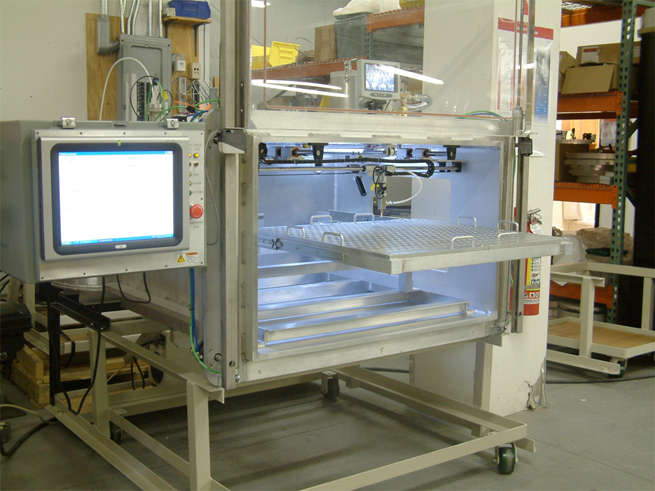

Vacuum Chamber with Robotic Dispensing and Touch Screen Controller

Vacuum Chamber with Robotic Dispensing and Touch Screen Controller

A custom fabricated parts matrix tray and rack system loads into a large vacuum chamber environment while the system first degasses the plotting material in a separate cylindrical chamber. Once the plotting material is degassed and the process specified level of vacuum is achieved in the larger chamber, the plotting is then conveyed to the parts by means of feedthru tubing to a positive displacement dosing pump. This travels across the parts matrix by means of an x-y motion apparatus under the control of the user imputed parameters.

Monitoring and control of the system is programmed to the customer’s specified process needs. Operation is configured to both optimize production time and assure the proper cycling of system. Vacuum degassing and multi-dose plotting times are integrated into the program sequence. Real time video monitoring of the parts and material in production and touch screen computer interface allow for continuous operator inspection of the process.
