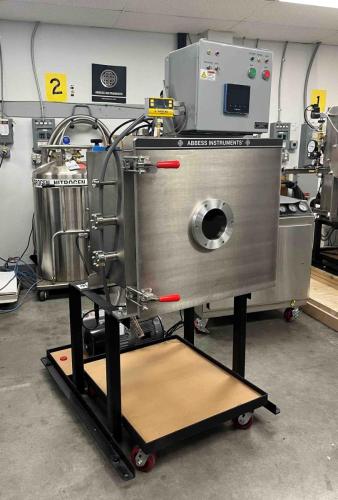

Thermal Altitude Test Chambers
Standard Specs
- Control temperature setpoints and ramp rates from -180°C to +200°C
- Pressure control from Ambient to 250,000 feet (1.27E -2 Torr)
- Spare ports and with multiple feedthrough options
- Calibrated vacuum gauges
- Roughing vacuum pump
- Clear view acrylic door or metal door with viewport (temperature dependent)
- Vent and vacuum valves
- Vacuum Cycle Controller with:
- Customizable ramp, soak, and dive profiles (rapid decompression capable)
- Full integration with valves and gauges
- Automated vacuum and temperature control
- Data logging and remote access
Optional Features:
Chamber Size
- 11" ID x 6" D, Round
- 11" ID x 12" D, Round (1 GAL Bucket)
- 15" ID x 20" D, Round (5 GAL Bucket)
- 35" ID x 40" D, Round (55 GAL Drum)
- 14" Cube
- 18" Cube
- 24" Cube
- 36" Cube
- 48" Cube
- Custom Cuboid
Chamber Material
- Acrylic (Rounds Only)
- Aluminum
- Stainless Steel
Thermal Source
Thermal Plate
Thermal Shroud
Vacuum Level
- Rough Vacuum (Ambient to 1 Torr)
- Medium Vacuum (1 Torr to 10E-3 Torr)
- High Vacuum (10E-3 Torr to 10E-7 Torr)
- Ultra High Vacuum (10E-8 Torr and Beyond)
Feedthroughs
- Optical feedthroughs (Viewports)
- Thermocouple Feedthroughs
- Power Feedthroughs
- RF, SMA, and Coaxial Feedthroughs
- Ethernet and USB Feedthroughs
- Rotary Feedthroughs
- Sample Manipulation Feedthroughs (Motion)
Reach out and see how we can help!
Description on Thermal Altitude Test Chambers:
Our Thermal Altitude Test Chambers are engineered to simulate extreme environmental conditions by combining temperature and altitude testing in a controlled, reproducible manner. These chambers are designed to evaluate the performance, durability, and reliability of products in both high-altitude and extreme temperature conditions, making them ideal for industries such as aerospace, automotive, electronics, and defense.
Key Features:
Altitude Simulation: Capable of simulating altitudes up to 250,000 feet, providing an accurate representation of conditions experienced at high elevations.
Temperature Control: Offers precise temperature control, with a range from -150°C to +200°C, allowing testing across a wide spectrum of thermal conditions.
Advanced Control Systems: User-friendly interface with real-time monitoring of both temperature and altitude, ensuring accurate and consistent results.
Rapid Temperature & Altitude Cycling: Features fast response times for both temperature and altitude changes, allowing for accelerated testing processes.
Spacious Test Area: Spacious interior to accommodate a wide variety of test items, from small components to large systems, ensuring flexibility for various applications.
Built-in Safety Features: Includes over-temperature and over-pressurization protection, ensuring safe operation throughout testing cycles.
Data Logging and Reporting: Equipped with integrated data logging for detailed recording of temperature, altitude, and system performance, providing traceability and valuable insights.
Applications:
- Aerospace: To simulate the extreme conditions that aircraft and spacecraft experience during flight.
- Automotive: To test vehicle components and systems under high-altitude and thermal stress.
- Electronics: To assess the performance of electronic devices and components at various altitudes and temperatures.
- Military & Defense: For evaluating the reliability of defense equipment under extreme conditions.
Why Choose Our Thermal Altitude Test Chambers?
Our chambers provide precision, reliability, and versatility to ensure that your products perform optimally in extreme environments. With customizable features and a robust design, they are the ideal solution for testing products that must withstand the challenges of both temperature extremes and altitude variations. Reach out today to learn how our test chambers can meet your specific testing needs.
