Abbess Electrical Assembly Thermal Vacuum (TVAC) Systems and Abbess Battery Testing Thermal Vacuum Systems are designed to provide the ideal testing environment for high-voltage and sensitive electrical components. This advanced system simulates the extreme conditions of space, high-altitude, and vacuum environments, ensuring that your electrical assemblies can withstand the most rigorous conditions. With precise temperature and pressure control, our TVAC system allows for accurate performance assessments, including insulation testing, voltage breakdown analysis, and electrostatic discharge (ESD) evaluations.
Key features include:
- High-Precision Temperature Control: Achieve accurate thermal testing with a wide temperature range, from cryogenic to high heat, ensuring your components perform under extreme thermal conditions.
- Vacuum Pressure Regulation: The system can simulate space-like vacuum conditions (from 10⁻³ to 10⁻⁶ torr), perfect for testing the resilience of electrical components in low-pressure environments.
- High-Voltage Compatibility: Designed for high-voltage electrical assemblies, the TVAC system includes advanced insulation and safety measures to protect against electrical faults, leaks, and breakdowns during testing.
- Advanced Monitoring & Data Logging: Continuous real-time monitoring of temperature, pressure, and electrical parameters ensures comprehensive testing and detailed analysis.
- Built-in Shielding: Protects sensitive components from electromagnetic interference during testing, ensuring accurate and undisturbed results.
- Customizable Test Configurations: Flexibility in test setups to accommodate a wide range of electrical components and test scenarios.
Ideal for industries such as aerospace, defense, telecommunications, and electronics manufacturing, our TVAC system provides a reliable and secure platform for validating the performance, durability, and safety of electrical assemblies in extreme environments.

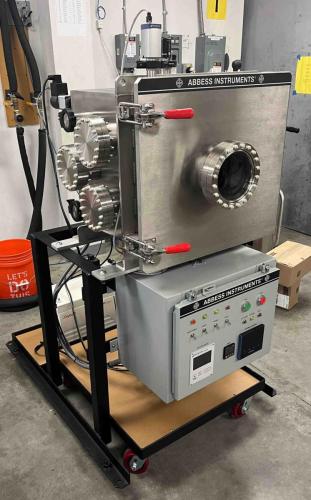

Electrical Assembly Thermal Vacuum System
Overview
Abbess Electrical Assembly Thermal Vacuum System is a state-of-the-art testing solution designed to simulate extreme environmental conditions for high-voltage and sensitive electrical components. It offers precise control over temperature and vacuum pressure, enabling comprehensive performance testing in space-like or high-altitude conditions.
Description
- 36″ Stainless Steel Cube Vacuum Chamber
- Stainless Steel Front Chamber Door with Custom Optical Viewport
- Thermal Range of -150°C to +200°C
- Custom Nickel Plated Thermal plate with Z306 Aeroglazed Shroud
- Leybold Ecodry35 Dry roughing pump with accompanying Turbovac 850i High Vacuum Pump
- Various ports which allows for a variety of feedthroughs to be added from the back side of the chamber
- Abbess’ Standard HV Purge Kit

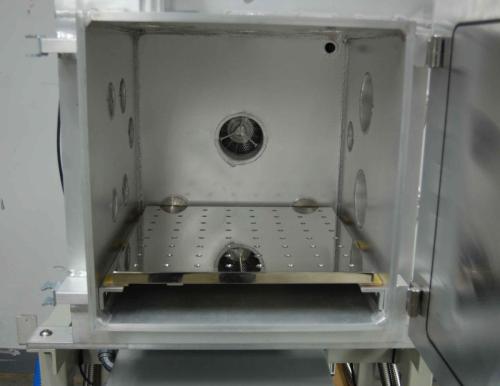

Battery Testing Thermal Vacuum (TVAC) System
Overview
Abbess Battery Testing Thermal Vacuum Systems are a specialized testing solution designed to evaluate the performance and reliability of batteries in extreme environmental conditions. With precise control over temperature and vacuum pressure, this system simulates space, aerospace, or high-altitude environments, ensuring batteries are thoroughly tested for thermal stability, charge retention, and overall functionality under low-pressure conditions.
Description
- 18″ Aluminum Cube Vacuum Chamber
- Aluminum Front Chamber Door
- Thermal Range of -150°C to +200°C
- Custom Nickel Plated Thermal plate with array of taped holes for battery hold down
- Leybold Ecodry35 Dry roughing pump with accompanying Turbovac 350i High Vacuum Pump
- Various ports which allows for a variety of feedthroughs to be added from the back side of the chamber
| Materials: |
|
| Interior Dimensions: |
|
| Included Features: |
|
| Optional Features/Items: |
|
