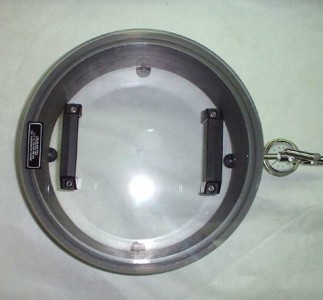

Medical Grade Vacuum Chambers

These medical grade vacuum chambers are designed to be a rugged unit in research, testing or production. Some of our customers find this to be a practical size for use in vacuum degassing of liquids, plastics resins, and blood products. This chamber is also used in vacuum drying samples and other materials where temperature and time are critical.

All chambers are vacuum tested to 29.92 inch(Hg) or better (10-4 torr) and should maintain this for its life dependent on seal condition and customer use.

Standard Features

Material:	Hard Coated Welded Aluminum or 304/316 Stainless Steel
Interior Dimensions:	Standards -from 4 inch up to 24 inch diameter and 24 inch deep Need a Smaller chamber? See our economy chamber Need a Larger chamber? See our large chambers
Vacuum:	Down to 29.92 inch(Hg) under dynamic vacuum Need a Vacuum Pump? ask us about our oil-less pumps
Included Features:	Vacuum connection 1/4 inch nptf, located near lower flange Unheated Vacuum Gauge, Vacuum Break and fittings near top flange, with internal diffuser
Optional Features/Items	Electronic vacuum cycle timer with manual override Stainless Steel Vacuum Gauge, Vacuum Break and fittings near top flange, with internal diffuser Heated/cooled shelves for keeping items at a controlled temperature Heated to + 200C or cooled to Cryogenic -196C/-320F Non-stick coating – Surfaces protected by a #8-403 PTFE non-stick coating Lights Vacuum Regulator In vacuum, Rotary Mixing, Vibration/Shaking Shelf brackets for Trays or Heated Shelves Vacuum pumps and systems
