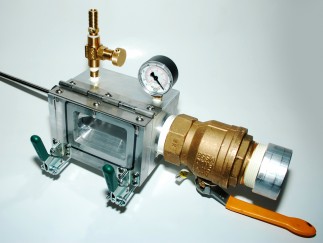

Vacuum Load Lock

An insertion shaft runs through an airlock that allows for powders, liquids and other substances to be added to the chamber without breaking the vacuum. Through an open vacuum chamber port valve, the boat containing the additive can be hand actuated into other center of the main chamber and dumped.

Standard Function

An insertion shaft runs through an airlock that allows for powders, liquids and other substances to be added to the chamber without breaking the vacuum. Through an open vacuum chamber port valve, the boat containing the additive can be hand actuated into othe center of the main chamber and dumped.
Applications: Batch mixing, incapsulating dry solids such as powders, ageregates, fillers, as well as liquids and liquids without air intrainment
Industries: Casting, architectural detail, modeling, pharmaceutical, molding, electronics, aerospace, medical, resin floors
Specifications:

MaterialsStainless steel, brass, acrylic, aluminum, PTFE non-stick coating

Dimensions

2″ Chamber Port Valve

6″ x 3-1/2″ Airlock Chamber with 1″ Acrylic Lid with two latches

3-1/2″ x 1-1/8″ x 1″ nominal Sample Boat

24″ Arm length

* Sizes subject to change based on proptionality to chamber

Optional Features: Sizes of components can be altered based on customer specifications
Size of boat is dependent on size of valve
Pricing: Standard unit #3,500, custom determined on customer specs.
